I would just about bet Meshy AI gave a “non-manifold” model. 3-D models that are intended to be digital assets can have that issue, and I would suspect it’s easier for an AI to produce them versus properly manifold objects ready to be made solid.

There are ways to fix them though, and Meshy even has their own suggestions (Blender and Meshlab).

Gee, I wonder which political party they belong to…

More than a dozen mayors from the main opposition Republican People’s Party, or CHP, and hundreds of municipal officials have been arrested in recent months for alleged corruption…

Yup, there we go.

For the layout, KLE is the old standby and is used by several other tools. You can then import THAT into a plate generator, the one HERE by ai03 (fairly well known designer in the small world of keyboard people) is probably the best and most reliable. That will let you generate DXF files for your cutter. At it’s simplest, a switch plate, a bottom plate, and some standard brass standoffs are enough to make the physical structure. Once you have the dimensions, though, it’s not TOO hard to design a 3D printed case or a more sophisticated set of slices to go on your laser (LibreCAD, Inkscape, or even direct in Lightburn IIRC), and acrylic stack cases are very much a thing, though not so much in vogue as commercial products anymore. The board in this post started as a completely Masonite build, because my little 5W diode could cut it reasonably well. It was only in the last week or so that I took it apart and replaced the laser-cut standoff spacers with a 3D printed version with a sidewall to make it look slightly more like a finished keyboard.

For wiring, I sort of play in the kiddie pool. Most of my boards are hand-wires, and there as many tweaks to the formula as there are makers, but THIS older set of posts from Matt3o (another well known designer) is as good as any for the basics. I find Raspberry Pi Picos and other RP2040 clones easier to work with, but YMMV and the concepts are the same. I have done two PCBs. Both of them are just traces and through-holes. The first one just has a spot to run wire to a Pi Pico or other dev board. The other adds a few spots for indicator LEDs and actually crams in a spot for Pi Pico compatible board, which means it’s easier to keep my firmware on hand. For firmware, KMK is in interpreted python and is very easy to set up, but QMK and its tweaked versions for the VIA and VIAL graphical remapping software are more sophisticated and extensible.

I had to learn KiCAD well enough to muddle through (and the second PCB does have a few errors, but not enough that I had to scrap them, thank goodness). More clever people than I, actually design proper PCBs with the microcontroller and necessary components included during fabrication, and there are custom keyboards all over github with KiCAD files to look through (the “GH60” is the classic example). There are even plugins to take a schematic view in KiCAD (the line diagrams of circuits) and populate the actual physically-representative footprints based on KLE data. There are also customized libraries of keyboard-switch footprints that are a little nicer than the ones built into KiCAD (though there ARE usable ones built in).

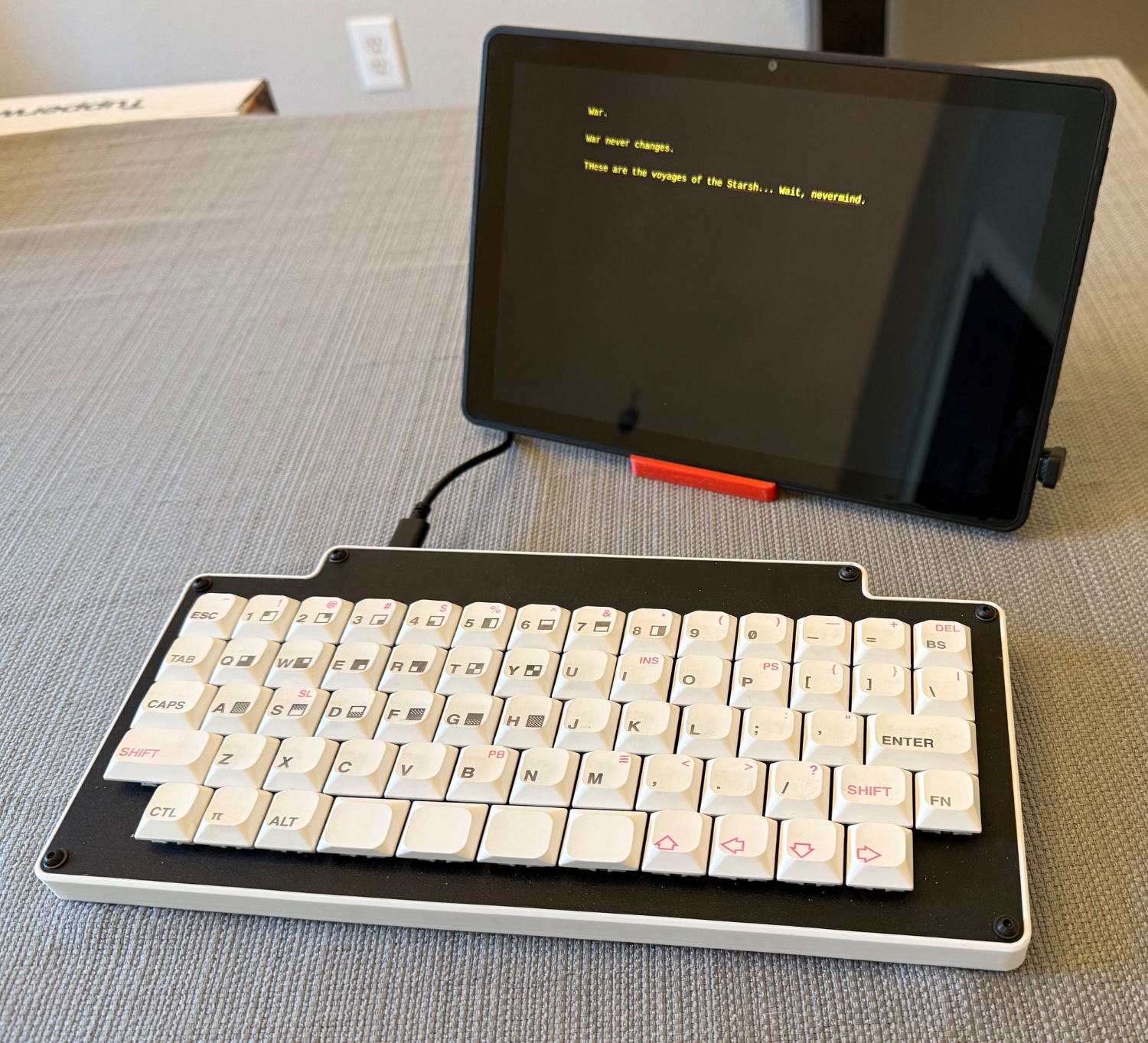

The keyboard is one I designed myself. It doesn’t use any stabilizers, the extra parts needed to make long keys press evenly. I did this by, well, not using any long keys. Otherwise, I did as much as I could to keep it pretty mainstream, unless you touch type lots of numerical digits or need your arrow keys in the traditional shape.

It has a bigger brother with a numpad, but I had to order 5 PCBs, so for this one I simply snapped off the numpad and used a wire to bridge the one broken connection. It’s fairly low profile, using the narrowest height I could cram everything into and using switches that are reduced height above the “plate” but are otherwise normal mechanical keyboard switches. I got blank low-profile keycaps and designed my own legends and used a laser engraver (instead of an iron or press) on Cricut’s infusible ink markers. They photograph better than IRL, but they did come out pretty well. There is a Raspberry Pi Pico wired to the circuit board and running custom firmware (KMK). The rest is made of painted Masonite hardboard and 3D prints.

If you wanna know you can type in about:support into the firefox address bar and check if HARDWARE_VIDEO_DECODING says available. Cool stuff either way tho, thanks for sharing :)

Ahh, well in that case, it appears not, at least for this distro. “Runtime | unavailable | Force disabled by gfxinfo”

That’s the beauty here. I don’t HAVE to write anything, so it’s not technically a failure if I don’t, and either way I got to do something amusing and pointless with a piece of technology!

I’m not sure, but there’s also the Postmarket Arch-based distro that has a more polished website, and its page for this class of devices says 3D acceleration is generally working. Whether that extends to video decoding in the browser, I am not sure. I guess I could pull up some videos and see if they play well, LOL. “Jailbreaking” tablets and getting an OS someone else worked out how to install onto them is towards the edge of my technical skillset, TBH.

If you would like my thoughts on the Shakespeare authorship question or why The Last Jedi is unfairly maligned, I can help you out all day, however.

My thinking is that I tend to do better reading on an e-reader, maybe I’ll do better writing on an e-writer? If not, it’s Linux on a tablet, LOL.

I use a keyboard with an inbuilt trackpoint.

What are you using? “Tex” mechanical board, old Model M with trackpoint, one of those standalone Thinkpad keyboards?

Miters are the devil. Your box joints came out great though!

I’ve used adhesive steel wheel-balancing weights on a couple of my modded keyboards. They’re cheap, low-profile, and have to be lead-free. If you have room on your bottom plate, just slap a bunch on there. You can put down masking tape first if you want to avoid damaging the plate if you decide to remove them.

It’s always sad to lose a friend, but even with a new administration, nobody can really trust USA anymore, USA is currently descending deeper into a authoritarian regime, and resistance is effectively being systematically removed. As it is, there seems to be little hope that USA will ever become a functional democracy.

I hope that a better US administration will come after this one and that it will improve the things that can be improved easily (tariffs, visas, rhetoric, and other transactional policies), but at this point Trump has poisoned the well and it will take a generation of good (or at least understandable and workable) behavior by both US parties to rebuild a fraction of the trust and soft power the orange idiot has squandered in barely half a year.

That can help a lot with linear boards, but if you try to force this thing to dry only through the side grain, it’s almost literally never going to dry.

The other poster who recommends guiding the checking is onto something, but “rustic” (or something building upon that) is really going to be the only viable aesthetic here.

Yup! We called the good ones “happy secrets,” and they’re perfectly okay.

Yup, at least a year and probably more, and it will split because that’s what giant “cookies” like this do.

Very cool, though JFC there’s no way MY printer will be fine tuned enough to generate the channels. The whole process reminds me of the rednecks who pour molten aluminum down fire ant hills, in a good way. The sealing with glorified Elmer’s glue is also clever.

Now all that said, you wouldn’t want to make anything that’s going to have much contact with water, so a lot of typical applications are risky: “My PCB is leaking!” I do wonder if you could do the same thing, but less immediately recyclable, with PLA and a 3D pen.

No, they exploded, as the Welsh are wont to do.

Good point but for presidential elections, electrical districts don’t make any sense.

In 48 out of fifty states, they don’t matter for presidential elections. I think only Maine and Nebraska split their electoral college votes at all.

Also, if the districts are being manipulated to provide a skewed election result then are the districts really groups of people with similar needs?

The original purpose has indeed been corrupted in many places, and those where it hasn’t are tempted into a “race to the bottom” as states with modest but persistent majorities are gerrymandering their states to the hilt. Still, the original idea of electoral districts makes a lot of sense, and even moreso when communications and travel were much slower.

They said it was an osprey, but let’s be honest, it was probably a bald eagle wearing a mask.

Oh hey, it’s that magic time period somebody clearly explained to Donald once when he was younger!
